Redefine Ease-Of-Use
With dual 12″ touch-screen displays and full redundancy, Vantage 12 is a smarter way to fly.
Vantage 12 is the most cost-effective and straightforward path for Entegra-equipped Cirrus owners and operators to upgrade into a highly capable, modern glass cockpit. Featuring dual 12-inch displays with 3D Synthetic Vision, a hybrid touch user interface, dual-AHRS MFD reversion, and much more, Vantage 12 delivers advanced capability without the complexity or cost of a complete panel replacement.
Pilots will appreciate the intuitive, uncluttered interface, striking design, and powerful features that dramatically enhance situational awareness—making flying safer, easier, and more enjoyable.
Vantage 12 provides significant improvements in display size, brightness, and processing performance, while preserving the ease of use that defines Avidyne avionics.
Vantage 12: the smartest upgrade for your Cirrus.
Vantage 12 Features
Vantage 12 is the only touchscreen display that is a direct retrofit upgrade for Entegra-equipped aircraft.
Failsafe architecture enabled by dual AHRS and split-screen MFD capabilities keeps critical safety functions available when you need them most.
Avidyne’s hybrid touch interface gives you the option to use the touch-screen or tactile buttons and provides a seamless integration with other Avidyne products.
3D Synthetic Vision delivers a crystal-clear, VFR view of your surroundings, displaying terrain, obstacles, traffic, and more for complete situational awareness.
Minimalist interface prioritizes the information you want, dramatically enhances situational awareness, making your flights more enjoyable, and safer.
Two brilliant, easy-to-read 12” flight displays are 40% larger than legacy Entegra displays with 64% more pixels for extraordinary resolution and clarity.
Seamless integration to Avidyne’s IFD 100 iPad app and ForeFlight® with wireless flight plan syncing, and support for other platforms including FlyQ®, SkyDemon™, and more.
Trouble-free, straightforward Installation by reusing existing aircraft wiring and ensuring compatibility with all Cirrus engine instrument configurations eliminating costly enablement fees to unlock premium features.

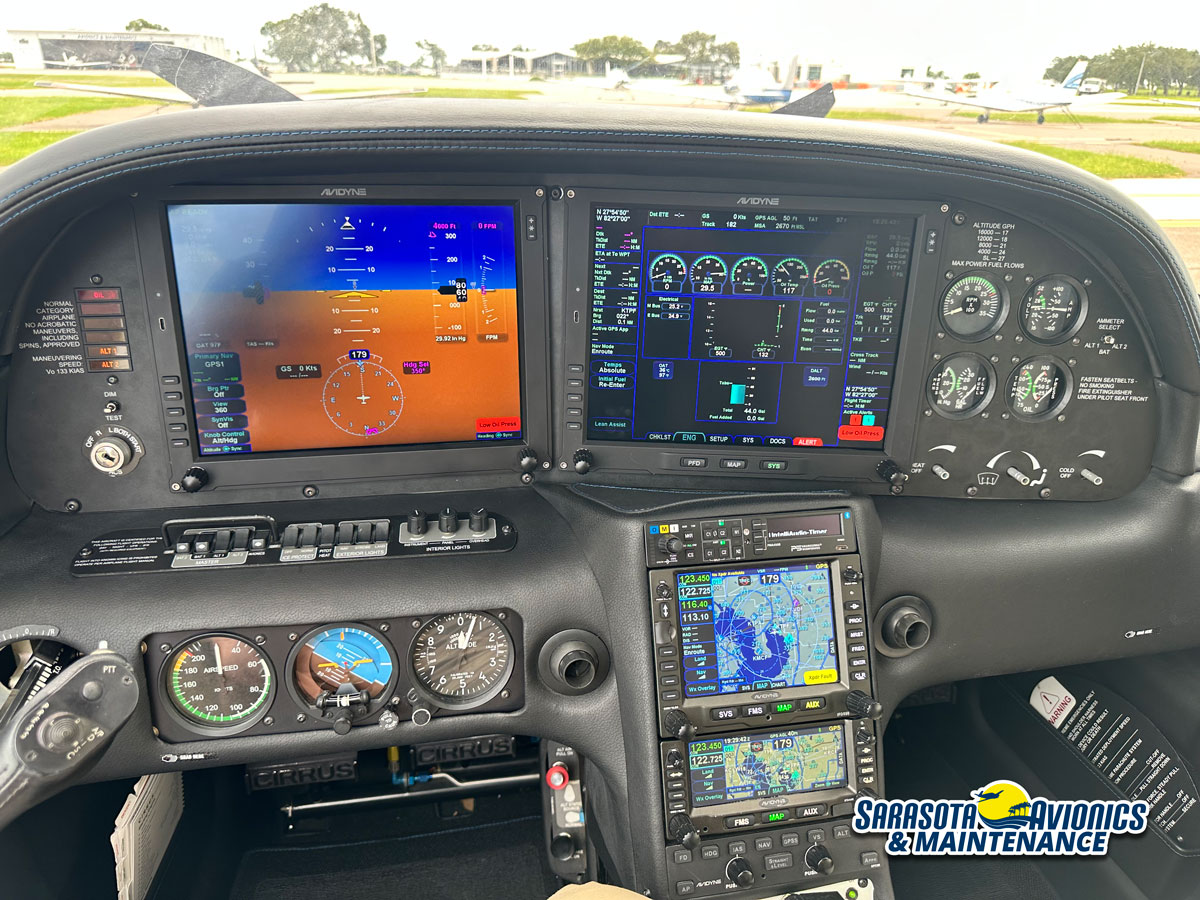

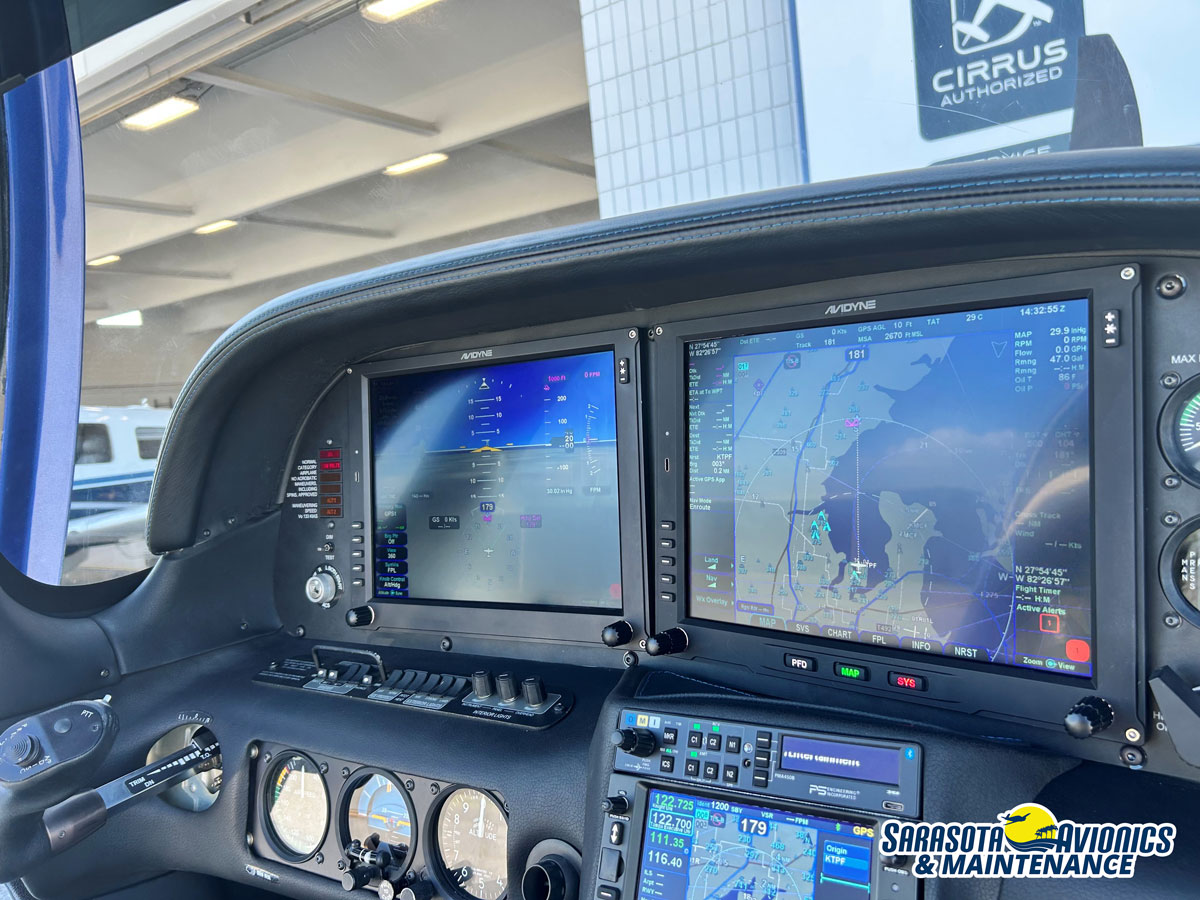

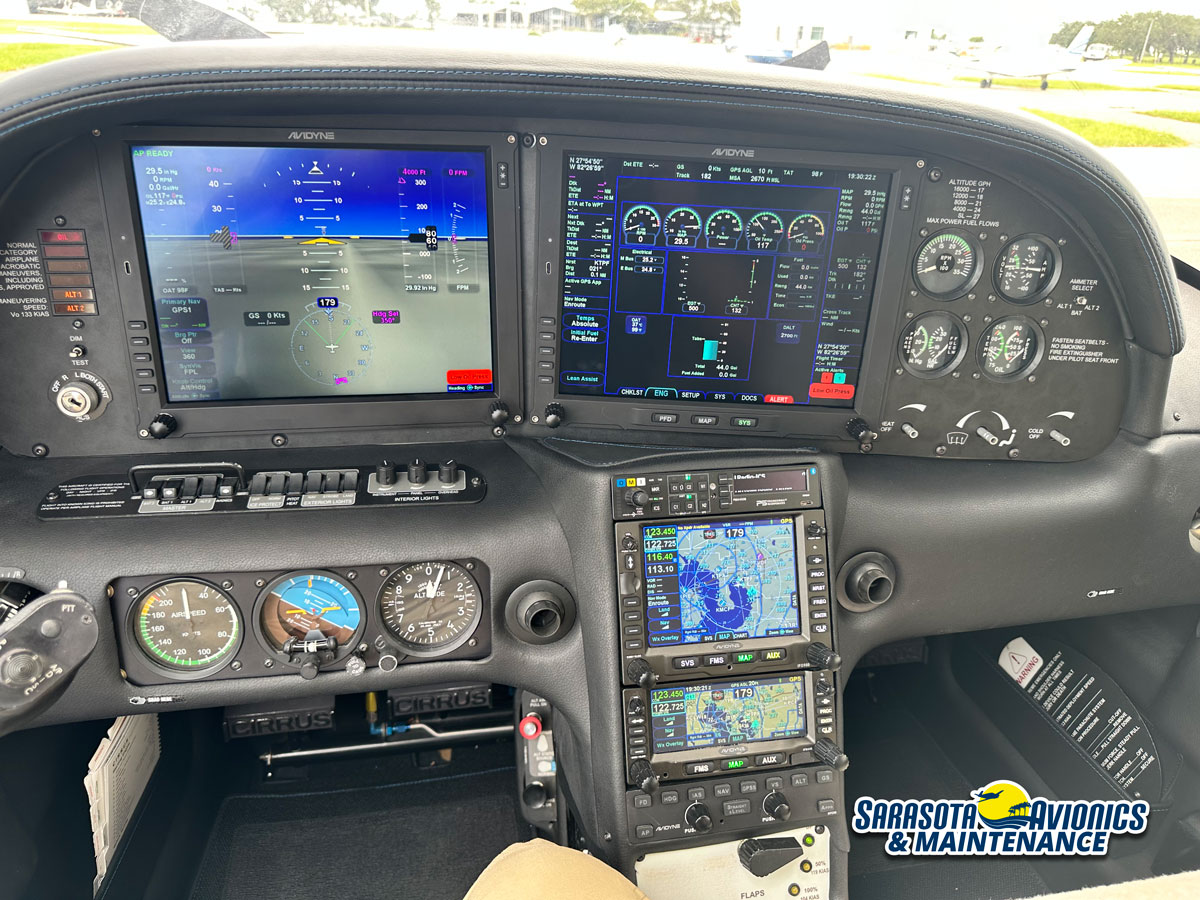

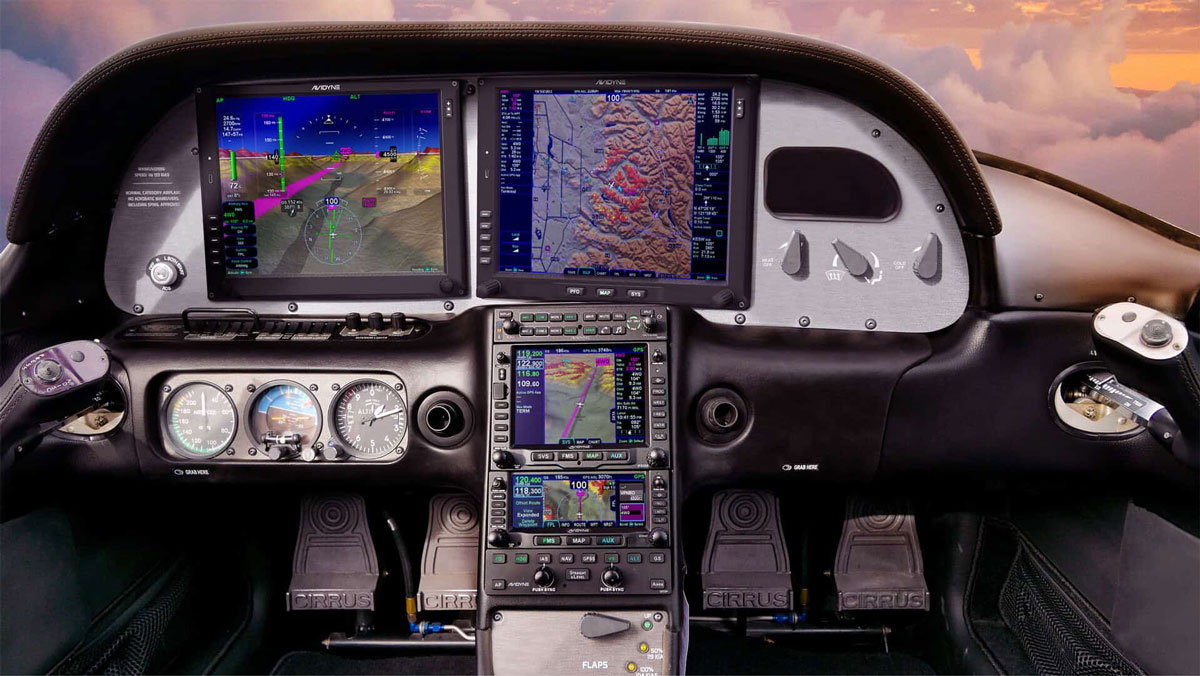

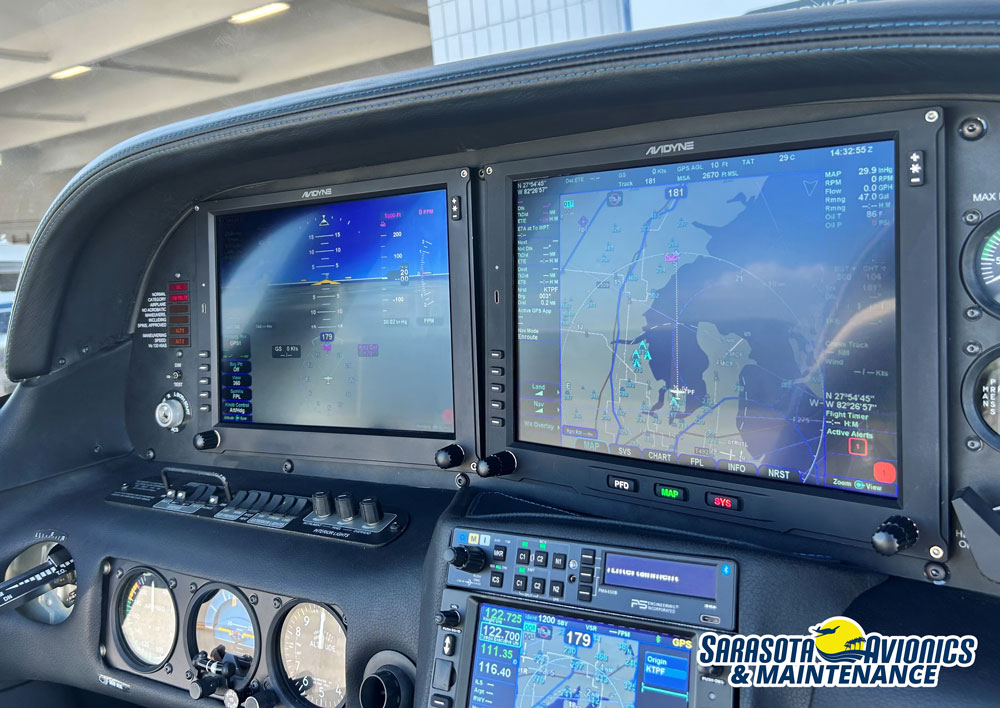

Dual 12-inch XGA Displays
Vantage12 displays are 40% larger than Entegra displays and the Hybrid Touch user interface allows pilots to control the system with the touch screen or knobs and buttons.
3D Synthetic Vision
Experience a crystal-clear, first-person view of the surrounding terrain, obstacles, traffic, and more all overlaid for complete situational awareness.
Dual AHRS with Split-Screen
Vantage12 includes dual AHRS and split-screen MFD capabilities providing a failsafe architecture that keeps critical safety functions available when you need them.
Primary Engine Instruments
Vantage12 supports Primary Engine Instruments of PFD (w/DAU) and MFD shows Analog-style Engine Cluster w/digital readout EGT & CHT for each cylinder, Lean Assist Functionality, Fuel Management, and Electrical System Monitors.
Jeppesen Approach Charts
Vantage12 also supports full and split-screen Jeppessen Approach Charts and Airport Diagrams.
Installation Made Easy
Vantage reuses existing aircraft wiring and is compatible with all Cirrus engine instrument configurations eliminating costly enablement fees to unlock premium features.
Recommended Configuration
The configuration recommended for the optimal pilot experience with the Vantage flight deck is as follows:
- Vantage PFD & MFD displays
- Redundancy option (2nd MAG & ADC)
- AMX240 audio panel
- IFD540 #1 GPS/NAV/COM
- IFD440 #2 GPS/NAV/COM
- DFC90 autopilot
- AXP322 transponder & SkyTrax 200 ADS-B in (if no Skywatch) or NGT9000 remote transponder/ADS-B/TAS (replaces Skywatch)
Get Ready For Vantage
Upgrading to the Vantage 12 flight display system is a game-changer for your G2 or G3 Cirrus. Avidyne's four-step plan makes it easy to prepare your aircraft for a seamless installation. Here’s how to get started:
Install the DFC90 Digital Autopilot
Replace your legacy Stec-55X with the precision of the DFC90 autopilot. Your current Entegra E1 PFD will need a MOD55 upgrade for compatibility and MODXX for WAAS support—both essential steps toward unlocking full Vantage functionality.
Upgrade GPS Navigator and Transponder
Swap one of your GPS navigators with the IDF540, offering WAAS capabilities, modern navigation, and seamless integration with the DFC90 autopilot. At the same time, install the AXP322 remote transponder to free up space for the larger display. Add ADS-B In, if you don’t already have it, with the SkyTrax200 for enhanced situational awareness.
Upgrade Second GPS Navigator and Audio Panel
Replace your second GPS Navigator with the IFD440. This gives you dual WAAS-enabled GPS|NAV|COM capability—ideal for IFR operations. It’s also a great opportunity to replace your factory audio panel with the AMX240 for cleaner audio and better integration.
Install Vantage 12 Flight Displays
With your systems upgraded and panel ready, it’s time to install the Vantage 12 displays. Enjoy a powerful, modern glass cockpit experience with intuitive interfaces, crystal-clear visuals, and integrated control.
Trade-in Consideration:
An IFD540 is strongly recommended for the #1 GPS/NAV/COM. To encourage this configuration Avidyne will take an existing IFD440 (in good working condition) in exchange for a factory refurbished IFD540 (with full 2 year factory warranty) at no charge.
If the aircraft currently has GNS units installed, Sarasota Avionics offers trade-in values toward a new IFD540/IFD440 as detailed below:
| GNS-430 Model | Trade-in Value* |
|---|---|
| Non-WAAS (28V) | $650.00 |
| Non-WAAS (14/28V) | $2,000.00 |
| WAAS (28V or 14/28V) | $3,000.00 |
| GNS-530 Model | Trade-in Value* |
|---|---|
| Non-WAAS (28V) | $1,500.00 |
| Non-WAAS (14/28V) | $2,500.00 |
| WAAS (28V or 14/28V) | $3,500.00 |
*Trade-ins must be in good cosmetic and working condition, subject to evaluation. Only eligible for units with black faceplate.

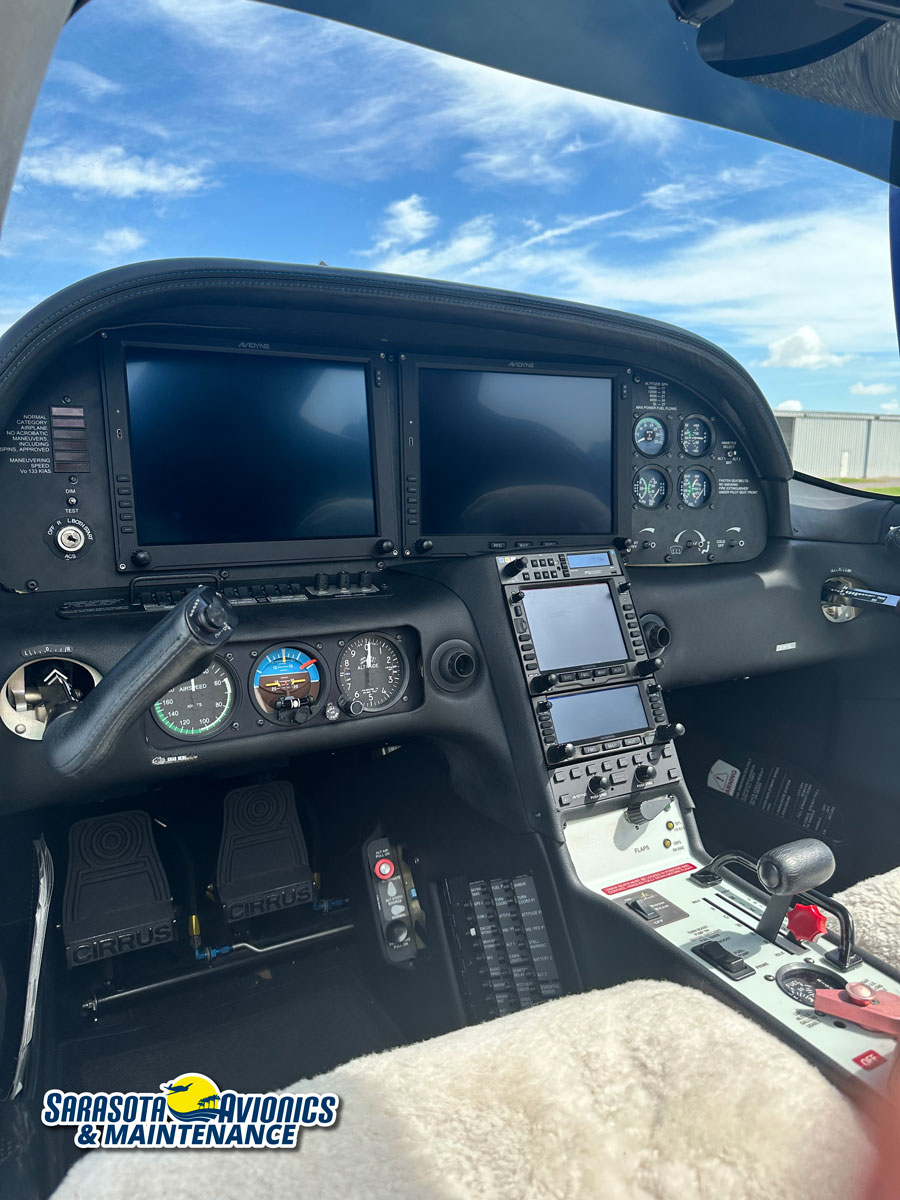

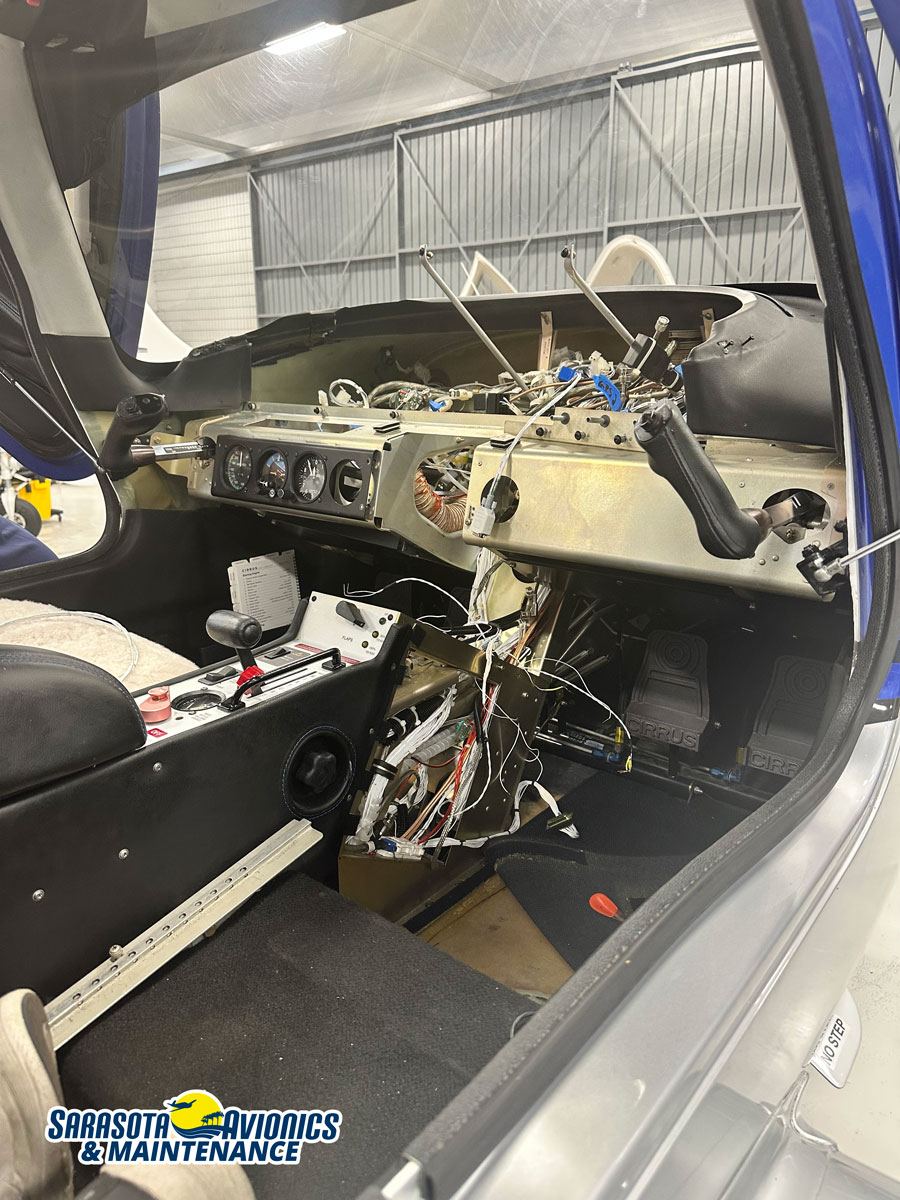

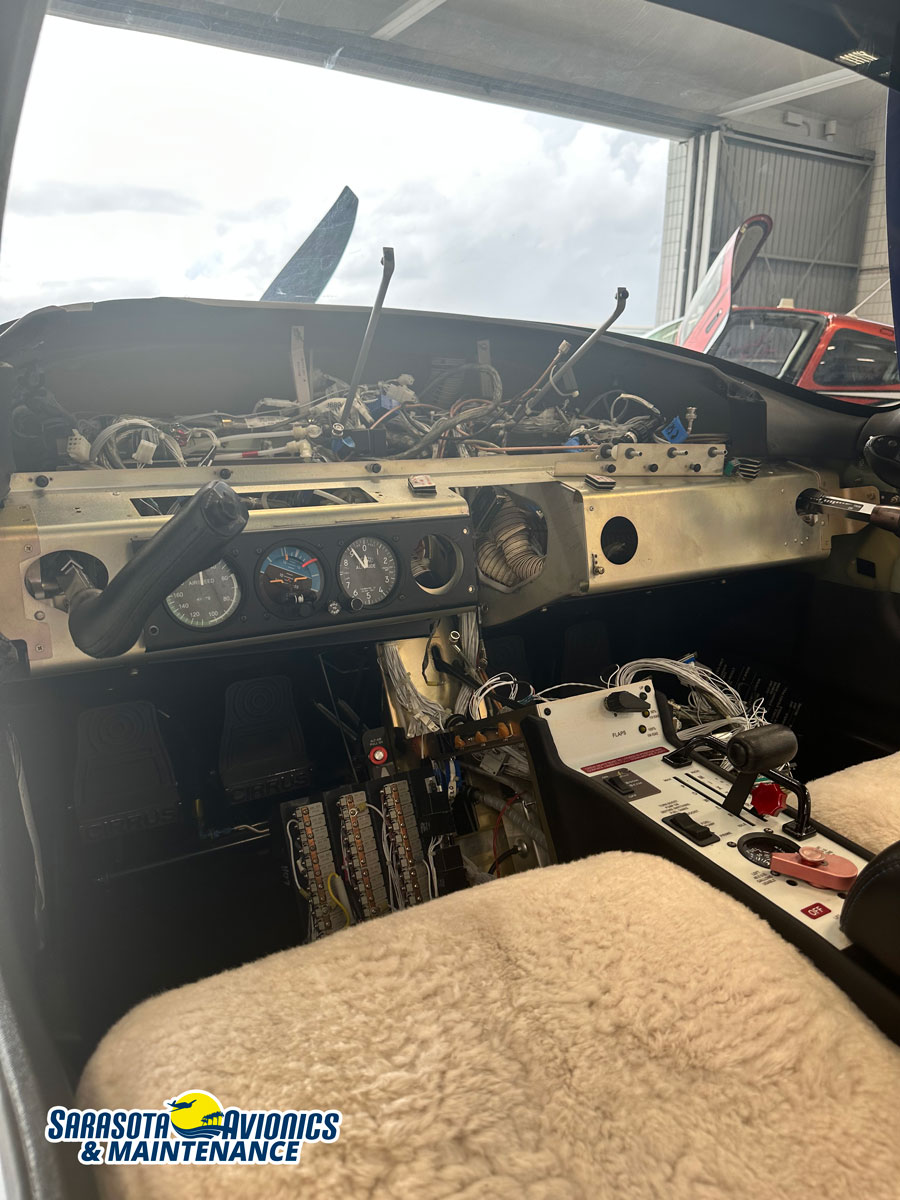

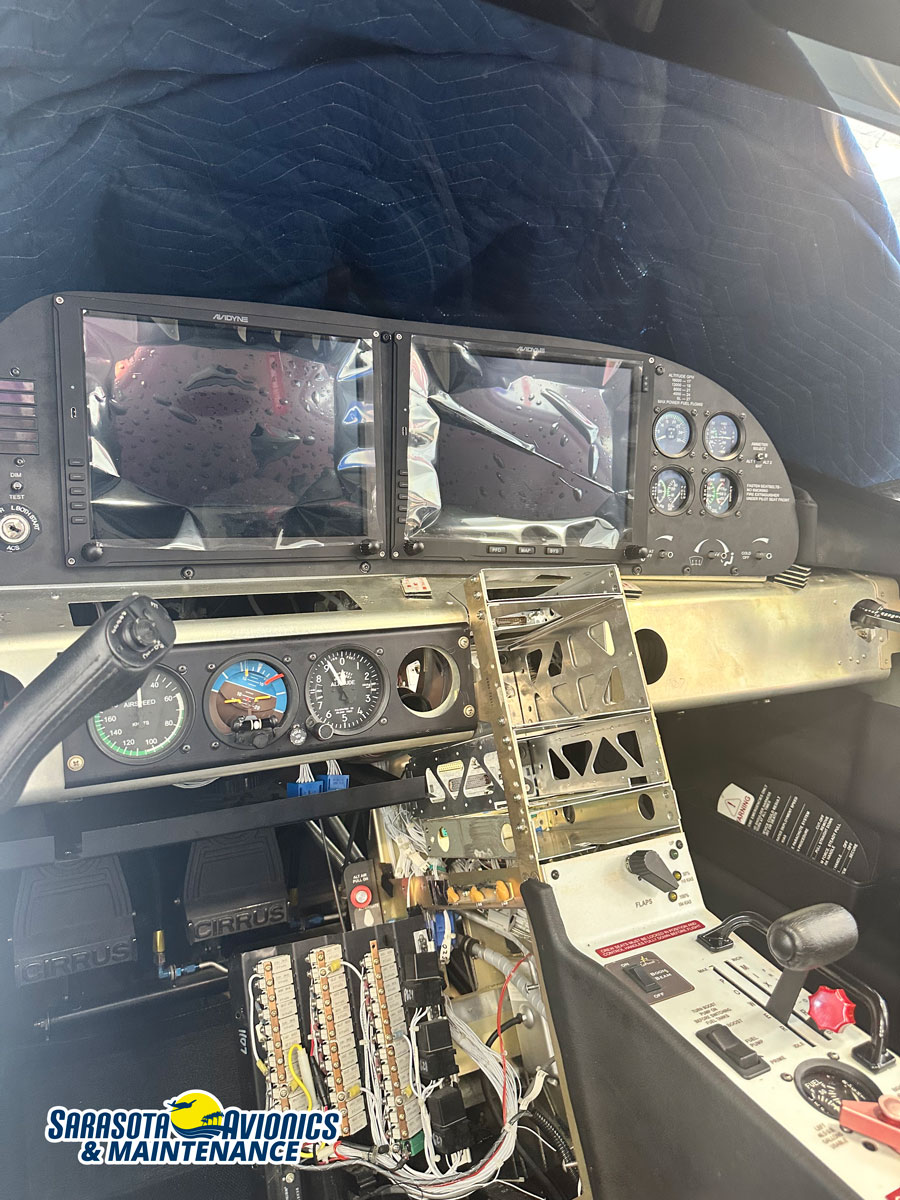

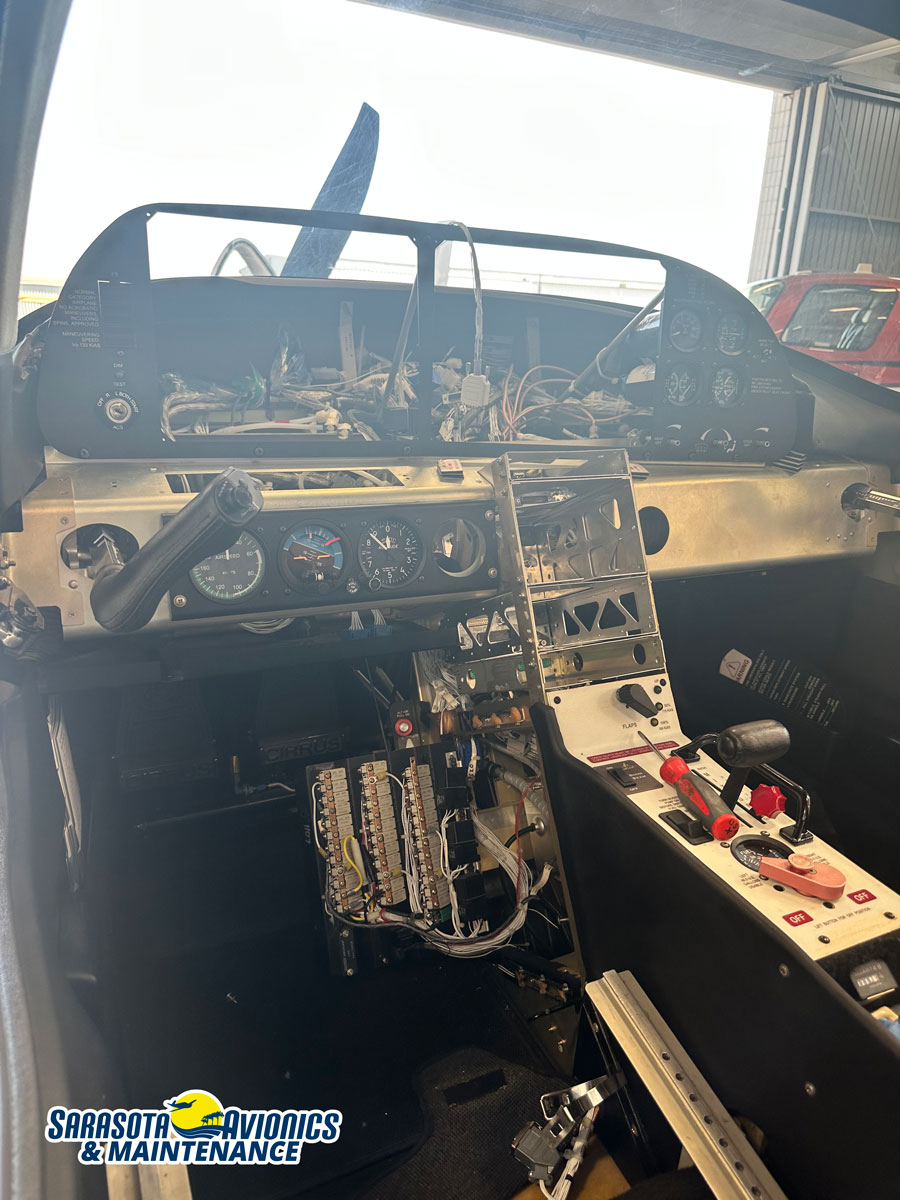

Vantage Installation
Pricing:
Vantage 12, Standard Cirrus Installation:
The minimum Vantage configuration includes dual ARS (one internal to the Vantage PFD and one internal to the Vantage MFD), one ADC, and utilizes the existing MAG in the aircraft.
- Vantage 12 PFD w/ARS
- Vantage 12 MFD w/ARS
- Air Data Computer
- Pilot Documentation Kit
- Install Kits and Harness
- Sheet metal, panel
- Label, Graphic overlay
$42,995
$39,995
Installed*
Vantage 12 w/Cirrus Full Redundancy Upgrade:
Avidyne recommends the optional Vantage redundancy kit be configured. The redundancy kit includes a 2nd MAG and 2nd ADC. This option provides the pilot with 2 complete and independent sets of ADAHRS.
- Includes all of the standard installation package above, plus:
- 2nd Air Data Computer
- Magnetometer
$54,995
$51,995
Installed*
*To receive the $3,000 limited time discount, deposits must be received by October 31, 2025, with work scheduled to begin no later than December 31, 2025. Installed price includes all equipment, labor, and misc parts, and assumes the aircraft meets Avidyne's Vantage 12 configuration requirements. See notes and conditions section below.
Notes and Conditions:
The published pricing for the Vantage displays reflects a credit for the return of the Entegra PFD and MFD. The Entegra PFD & MFD must be removed from the aircraft in Serviceable condition and returned to Avidyne. Failure to return the Entegra displays within 30 days will result in a charge of $5K each.
Dual Avidyne IFDs are required. GNS and/or GTNs are not supported by Vantage. An IFD540 is strongly recommended for the #1 GPS/NAV/COM. To encourage this configuration Avidyne will take an existing IFD440 in exchange for a factory refurbished IFD540 (with full 2 year factory warranty) at no charge. The IFD440 must be removed from the aircraft in Serviceable condition and returned to Avidyne within 30 days. Configuring the IFD540 in the rack will require a remote mounted transponder option (AXP 322 or NGT9000R). The aircraft must be equipped with externally mounted WAAS GPS antennas for the IFDs. Glareshield mounted antennas do not provide reliable GPS performance.
The recommended Audio Panel for a Vantage configuration is the Avidyne AMX240. The AXM240 provides a bezel design that is consistent with the IFDs and DFC90, monitoring of standby frequencies on both IFDs, and Bluetooth.
If the aircraft is not configured with a Skywatch, Avidyne recommends the AXP322 remote transponder/ADS-B out and SkyTrax 200 remote dual band ADS-B in receiver. Existing SkyTrax 100B and SkyTrax 200 can be field updated to software rev 1.03 for audio alerting. The Skytrax 200 will provide traffic hybridization with the traffic output of the Skywatch so all displays and the wireless traffic feed will show combined Skywatch (active) and ADS-B traffic. If the aircraft is configured with a legacy Skywatch TAS system, the recommended remote solution is the NGT9000R with the TAS enablement. This is a single box solution that provides transponder/ADS-B out, dual band ADS-B in, and TAS functionality. In most cases it utilizes the existing aircraft antennas and can be mounted under the pilot seat. This can be optioned to provide diversity transponder capability as required in Canada and for some other applications and locations. Existing MLB100, MLB100A, Skytrax 100 or FreeFlight ADS-B in products are not supported and should be replaced by a SkyTrax 200.
Avidyne strongly recommends that the DFC90 be installed in an Avidyne DFC tray as the older S-Tec trays have historically caused intermittent issues. The tray is included if a new DFC90 is ordered. If a customer has a DFC90 installed in an S-Tec tray, a standalone DFC tray must be ordered.
All of the Vantage flight deck components are provided with Avidyne’s standard warranty of 2 years from the date of installation. Customers with Entegra warranties will receive a refund pro-rated for the time remaining after the Vantage installation. Customers should contact Avidyne technical support directly to request a refund.
Ready to Upgrade Your Cirrus?
Contact us to get more info and schedule your upgrade consultation.
