FLY WITH PRECISION DISTANCE MEASUREMENT
Designed for high-performance turbine aircraft and helicopters, the GDM 4500 remote-mount DME works with select Garmin integrated flight decks and displays to provide slant-range distance calculations relative to DME ground stations.
REMOTE-MOUNT DME RADIO
AUTOMATICALLY TUNES DME CHANNELS, BASED ON SELECTED NAV RADIO FREQUENCY
FREE SCAN CAPABILITY SEARCHES FOR DME STATIONS WITHIN RANGE1
CAN REFERENCE MULTIPLE STATIONS FOR OPTIONAL DME-DME NAVIGATION1
OFFERS AN ALTERNATIVE NAVIGATION SOURCE TO SATELLITE-BASED GPS
MAXIMIZES RANGE WITH 250 WATTS OF TRANSMIT POWER
THE DME SOLUTION FOR TODAY’S FLIGHT DECKS

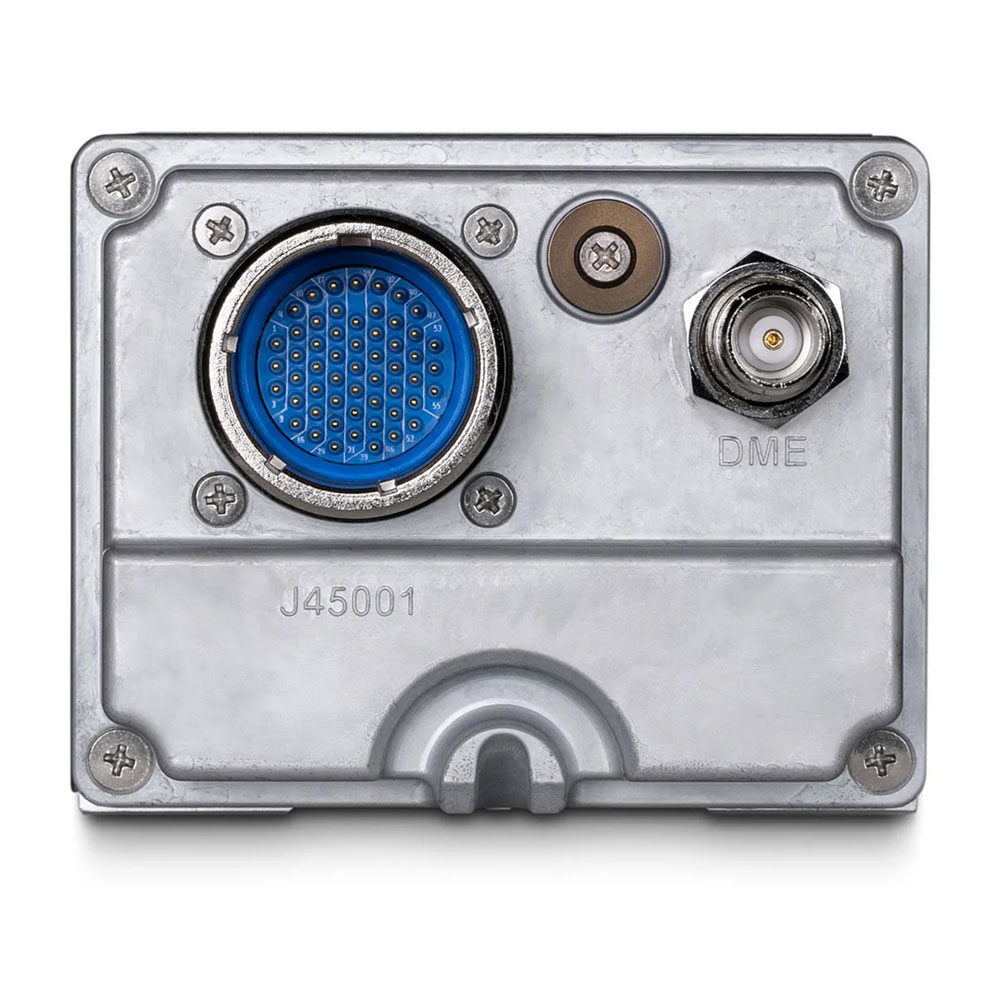

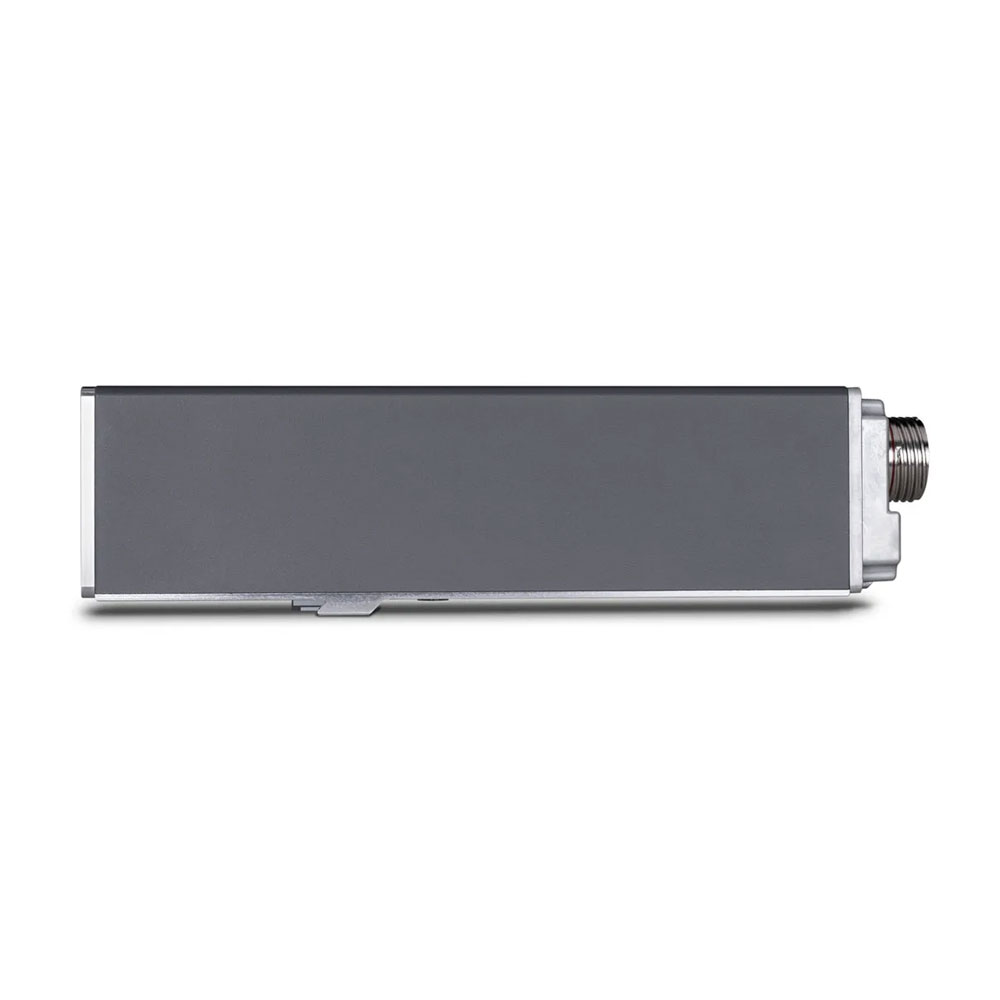

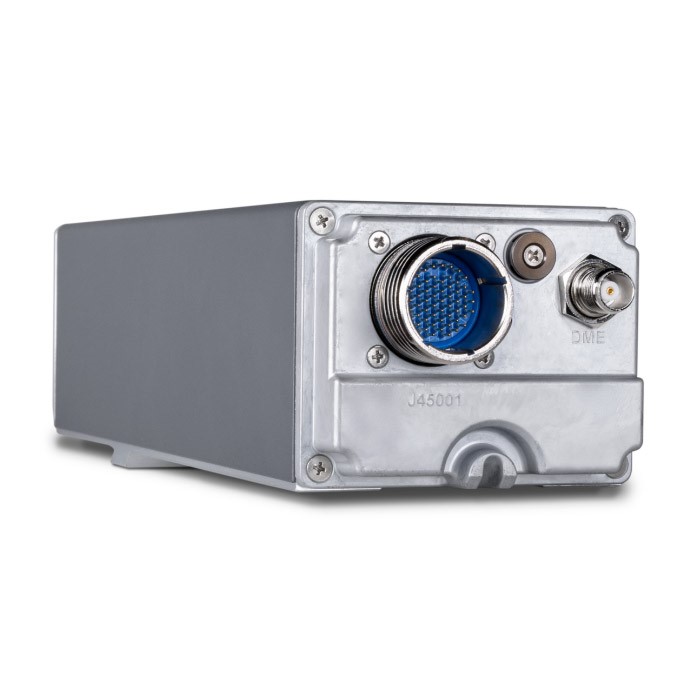

GDM 4500 DME is a modern digital radio, designed for installation in general aviation aircraft. It’s a remote-mount unit that follows the tuning of associated NAV radio(s).
MULTICHANNEL OPERATION
GDM 4500 can allow pilots to tune and track up to two separate DME frequencies. With an optional enablement and compatible avionics, the aircraft’s FMS1 can automatically scan and tune up to three additional DME frequencies.
DME HOLD CAPABILITY
For added navigation flexibility, the DME “hold” function lets you maintain your active DME distance indication when tuning the associated NAV radio to a different frequency. This function is particularly useful for instrument approaches where it becomes necessary to tune the localizer or other approach aid while needing to retain your NAV’s referenced DME information.
DME-DME AREA NAVIGATION (RNAV)
With a compatible flight deck or display, the GDM 4500 radio can use the distances from two or more DME ground stations to determine the aircraft’s position. This enables the DME to support RNAV routes, providing an alternative navigation option.
ROBUST INTERFACING WITH ARINC 429

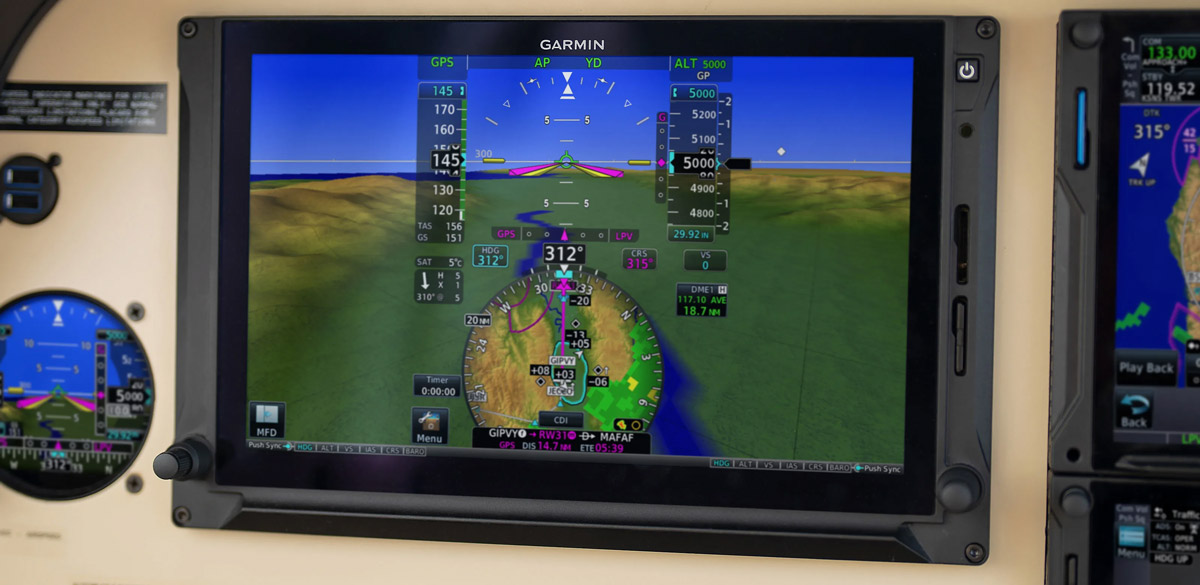

GDM 4500 integrates directly with compatible Garmin displays — no interface adapter is required. Additionally, it supports ARINC 429, RS-232 and King Serial connections. ARINC 429 provides a digital interface for third-party navigation units and displays on the aircraft.
COMPLETING THE SYSTEM
In addition to compatible navigation equipment and flight displays in your aircraft, you’ll need an L-band DME antenna (sold separately) to complete your GDM 4500 system installation. See your Garmin dealer for recommended antenna options and mounting configurations.
1 Requires a compatible Garmin system; feature availability varies by display.
General
- Operational temperature range -45° C to +70° C
- Maximum operating altitude 55,000 ft
Physical
- Installed height (including rack) 3.11" (79.0 mm)
- Installed width 3.46" (87.9 mm)
- Installed depth to connector backshell 13.32" (338.8 mm)
- Installed depth to straight connector backshell 12.84" (326.1 mm)
- Weight (unit only) 3.63 lbs (1.65 kg)
- Weight (with install rack, connector kit, and configuration module) 4.21 lbs (1.91 kg)
Power Specifications
- 14 V Typical/Tx 0.6 A
- 14 V Maximum/Tx 0.8 A
- 28 V Typical/Tx 0.3 A
- 28 V Maximum/Tx 0.4 A
Performance
- Minimum sensitivity level -90 dBm
- Maximum range (line of sight) 300 nautical miles
- DME channels 5 (with compatible avionics)
- Nominal Transmit Power 250 watts
Interfaces
- ARINC 429, RS-232, HSDB, King Serial, Audio Out
Certifications
- TSO-C66c DME/N
- ETSO-2C66b DME/N Class 1
- GTR 4500
- Mounting rack
- Configuration Module
- Product Information Manual
